Range of use
Widely used in various types of livestock farms, agricultural flowers, greenhouses, industrial plants, such as ventilation, cooling, ventilation place.

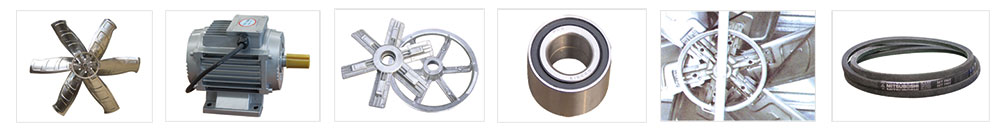

Main supporting equipment and characteristics
Fan blade is made of 304,201,430 stainless steel stamping molding,no dust,beautiful and durable.Special blade shape design to ensure that the air flow is large,notdeformation,not broken.
The hith efficient and energy saving motor passed thenational CCCcertification
Also protection class:I P55.insulation class:F grade.
Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which redces the weight og blade impeller complete,high corrosion resistance.Special three reinforced ribs pulley design.Blast-sanding treatment for attractive appearance,eliminate internal stress to improve its own rigidity and stability,never broken.
Fan bearing adopts imported double-row bearing with special waterproof design, water cant enter. High strength, lower noise, maintenance free and long service life.
Best outstanding experience rive process ,bestimmobility never loose.
Triangle selection of donestic business card procucts.
Technical parameters
| Model | Dimeter blades (mm) |
Blades rotational speed rpm |
Motor rotational speed rpm |
Air flow |
Total pressure |
Noise decibels |
Import power |
Rated voltage |
Outer size(mm) |
| high×width×thick | |||||||||
| HF-710B | 710 | 660 | 1400 | 22000 | 65 | ≤70 | 370 | 380 | 800×800×400 |
| HF-750B | 750 | 660 | 1400 | 25000 | 65 | ≤70 | 550 | 380 | 900×900×400 |
| HF-900B | 900 | 610 | 1400 | 30000 | 70 | ≤70 | 750 | 380 | 1000×1000×400 |
| HF-1000B | 1000 | 600 | 1400 | 32500 | 70 | ≤70 | 750 | 380 | 1100×1100×400 |
| HF-1100B | 1100 | 460 | 1400 | 38000 | 73 | ≤70 | 1100 | 380 | 1220×1220×400 |
| HF-1250B | 1250 | 439 | 1400 | 44000 | 56 | ≤70 | 1100 | 380 | 1380×1380×400 |
| HF-1400B | 1400 | 325 | 1400 | 55800 | 60 | ≤70 | 1500 | 380 | 1530×1530×400 |
